Vezetőcsúszó betétek fülkékhez
|
Vezetőcsúszó betétek fülkékhez
Vezetőcsúszó betétek fülkékhez
  |
|

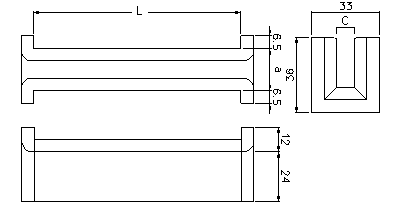

| kód |
anyag |
L x a (mm) |
C mm |
sínvastagság |
| D610040 |
Nylon |
100x20 |
5,5 |
5 mm (T45x45x5) |
| D610050 |
Nylon |
100x20 |
6,5 |
6 mm (T50x50x6) |
| D610060 |
Nylon |
100x20 |
7,5 |
7 mm (T60x60x7) |
| D610070 |
Nylon |
100X20 |
8,5 |
8 mm (T70x70x8) |
| D610080 |
Nylon |
100x20 |
9,5 |
9 mm (T80x80x9) |
| D610100 |
Nylon |
100x20 |
10,5 |
10 mm (T75x62x10) |
| D610120 |
Nylon |
100x20 |
12,5 |
12 mm (T100x80x12) |
| D610140 |
Poliuretán |
100x20 |
5,5 |
5 mm (T45x45x5) |
| D610160 |
Poliuretán |
100x20 |
7,5 |
7 mm (T60x60x7) |
| D610170 |
Poliuretán |
100x20 |
8,5 |
8 mm (T70x70x8) |
| D610180 |
Poliuretán |
100x20 |
9,5 |
9 mm
(T80x80x9) | |
|
|
Comfort-Lift
  |
|
| kód |
anyag |
L x a (mm) |
C mm |
sínvastagság |
| D610250 |
Nylon |
130x20 |
6,5 |
6 mm (T50x50x6) |
| D610260 |
Nylon |
130x20 |
7,5 |
7 mm (T60x60x7) |
| D610270 |
Nylon |
130x20 |
8,5 |
8 mm (T70x70x8) |
| D610280 |
Nylon |
130x20 |
9,5 |
9 mm (T80X80X9) |
| D610300 |
Nylon |
130x20 |
10,5 |
10 mm (T75X62X10) |
| D610320 |
Nylon |
130x20 |
12,5 |
12 mm (T100x80x12) |
| D610340 |
Nylon |
130x24 * |
14,5 |
14 mm (T90x65x14) |
| D610360 |
Nylon |
130x24 * |
16,5 |
16 mm
(T127x88x16) | |
|
|
Comfort-Lift
 |
|
| kód |
anyag |
L x a (mm) |
C mm |
sínvastagság |
| D610450 |
poliuretán |
130x20 |
6,5 |
6 mm (T50x50x6) |
| D610460 |
poliuretán |
130x20 |
7,5 |
7 mm (T60x60x7) |
| D610470 |
poliuretán |
130x20 |
8,5 |
8 mm (T70x70x8) |
| D610480 |
poliuretán |
130x20 |
9,5 |
9 mm (T80x80x9) |
| D610500 |
poliuretán |
130x20 |
10,5 |
10 mm (T75x62x10) |
| D610520 |
poliuretán |
130x20 |
12,5 |
12 mm (T100x80x12) |
| D610540 |
poliuretán |
130x24 * |
14,5 |
14 mm (T90x65x14) |
| D610560 |
poliuretán |
130x24 * |
16,5 |
16 mm
(T127x88x16) | |
|
|
Comfort-Lift
  |
|
| kód |
anyag |
L x a (mm) |
B mm |
C mm |
D mm |
E mm |
sínvastagság |
| D610720 |
Nylon |
200x20 |
32 |
8,5 |
10 |
25 |
8 mm (T70x70x8) |
| D610730 |
Nylon |
200x20 |
32 |
9,5 |
10 |
25 |
9 mm (T80x80x9) |
| D610740 |
Nylon |
200x20 |
32 |
10,5 |
10 |
25 |
10 mm (T75x62x10) |
| D610750 |
Nylon |
200x20 |
32 |
12,5 |
10 |
25 |
12 mm (T100x80x12) |
| D610760 |
Nylon |
220x20 |
32 |
8,5 |
9 |
21 |
8 mm (T70x70x8) |
| D610770 |
Nylon |
220x20 |
32 |
9,5 |
9 |
21 |
9 mm (T80x80x9) |
| D610780 |
Nylon |
220x20 |
32 |
10,5 |
9 |
21 |
10 mm
(T75x62x10) | |
|
|
Comfort-Lift
| |
|
| kód |
anyag |
L x a (mm) |
B mm |
C mm |
D mm |
E mm |
sínvastagság |
| D610820 |
Nylon |
220x30 |
45 |
8,5 |
9 |
31 |
8 mm (T70x70x8) |
| D610830 |
Nylon |
220x30 |
45 |
9,5 |
9 |
31 |
9 mm (T80x80x9) |
| D610840 |
Nylon |
220x30 |
45 |
10,5 |
9 |
31 |
10 mm (T75x62x10) |
| D610850 |
Nylon |
220x30 |
45 |
12,5 |
9 |
31 |
12 mm (T100x80x12) |
| D610870 |
Nylon |
220x30 |
45 |
16,5 |
9 |
31 |
16 mm
(T127x88x16) | |
|
|
Comfort-Lift |
